Condition: Used
Hours: 4,723 (Verified)

Key Specifications:

• Engine:
  • Manufacturer: Caterpillar
  • Model: C4.4 ACERT
  • Type: 4-stroke, turbocharged diesel
  • Displacement: 4.4 liters (269 cu in)
  • Number of Cylinders: 4
  • Net Power: 80 hp (60 kW) @ 2,200 RPM
  • Emissions Certification: Tier 4 Interim
• Powertrain:
  • Transmission: Hydrostatic
  • Max Forward Speed: 5.6 mph (9 km/h)
  • Max Reverse Speed: 6.2 mph (10 km/h)
• Dimensions:
  • Operating Weight: 17,544 lbs (7,957.9 kg)
  • Length with Blade: 14 ft (4.27 m)
  • Width Over Tracks: 6.23 ft (1.9 m)
  • Height to Top of Cab: 9.07 ft (2.76 m)
  • Ground Clearance: 1.08 ft (0.33 m)

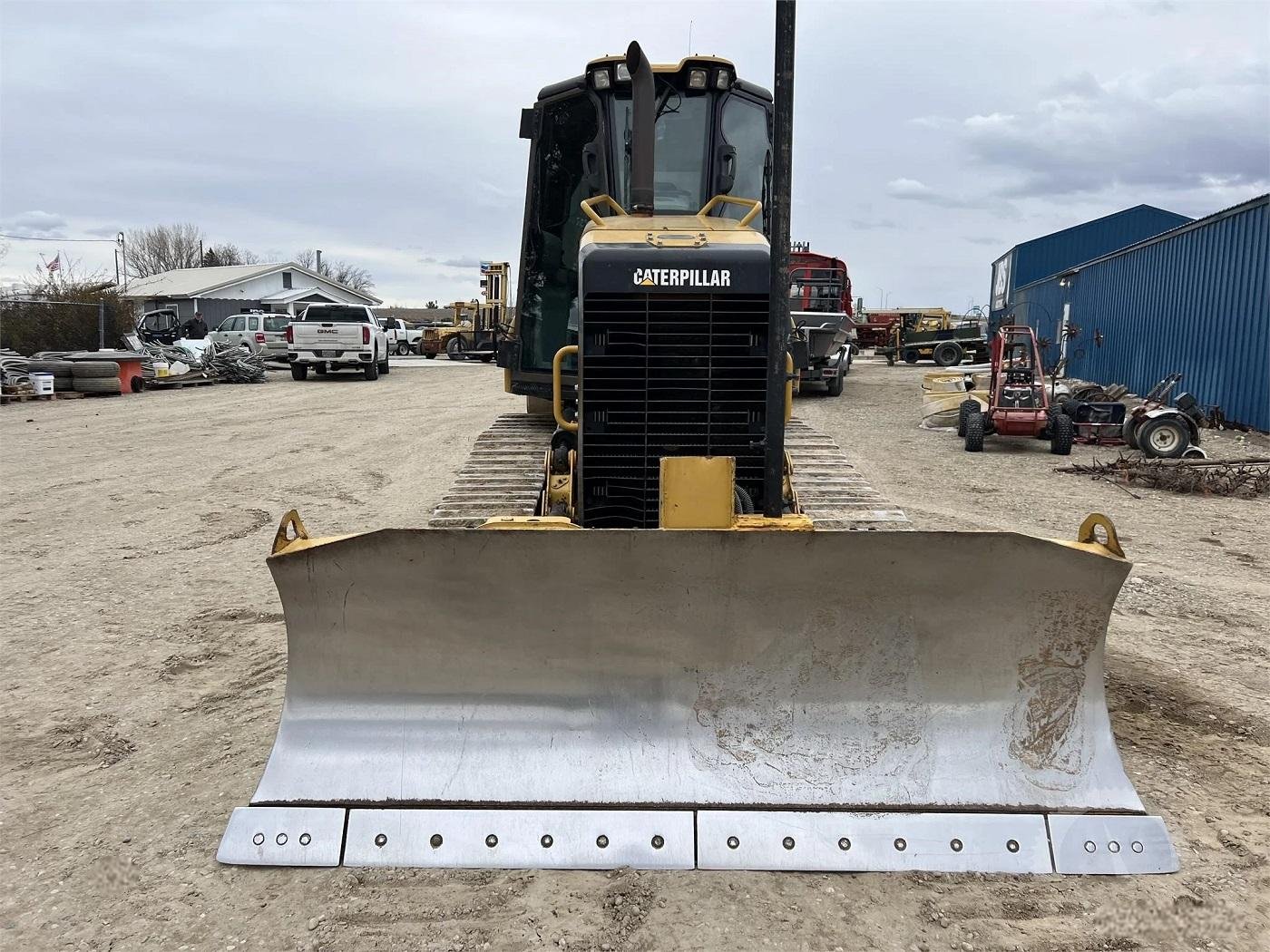

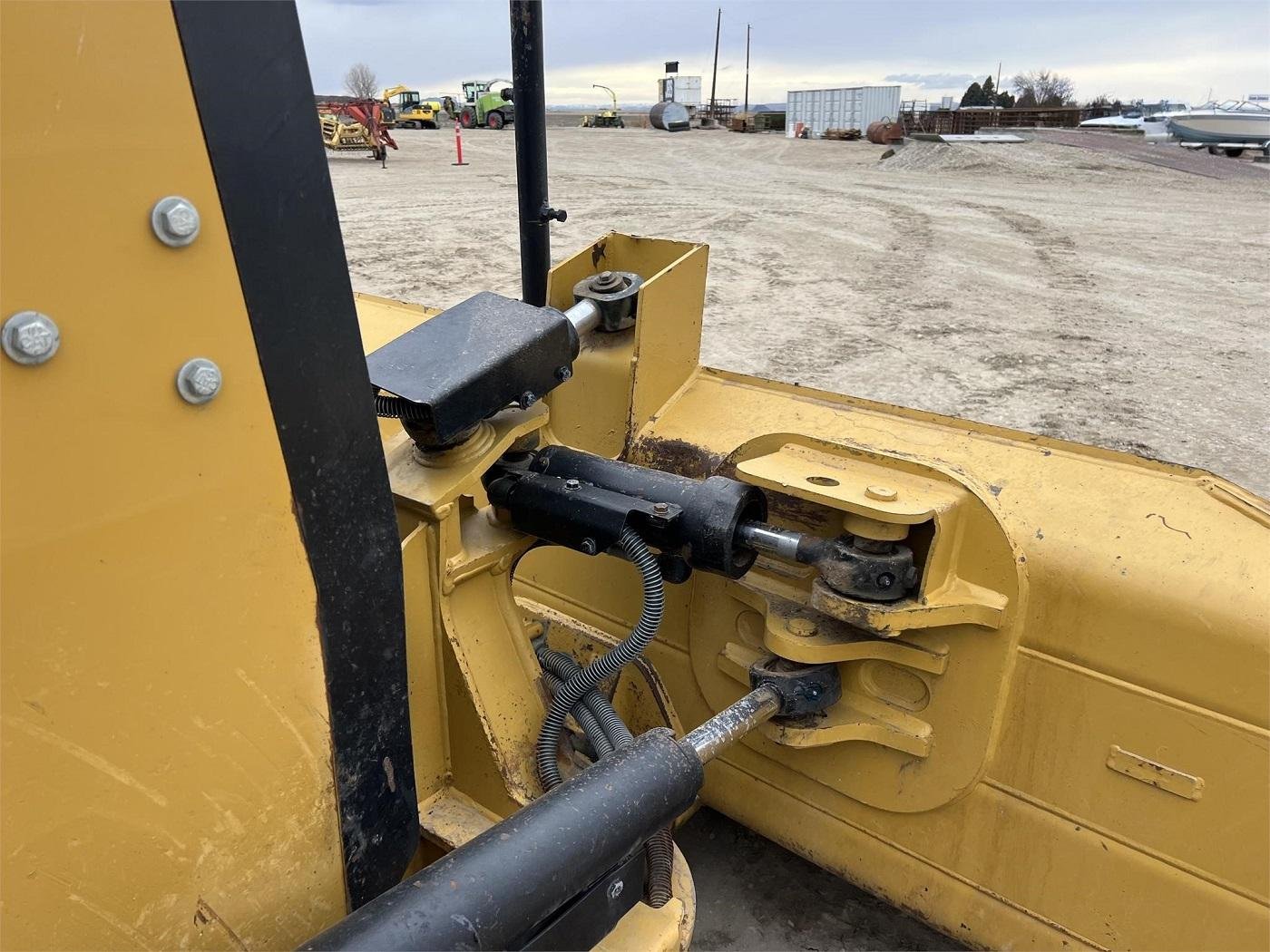

• Blade:

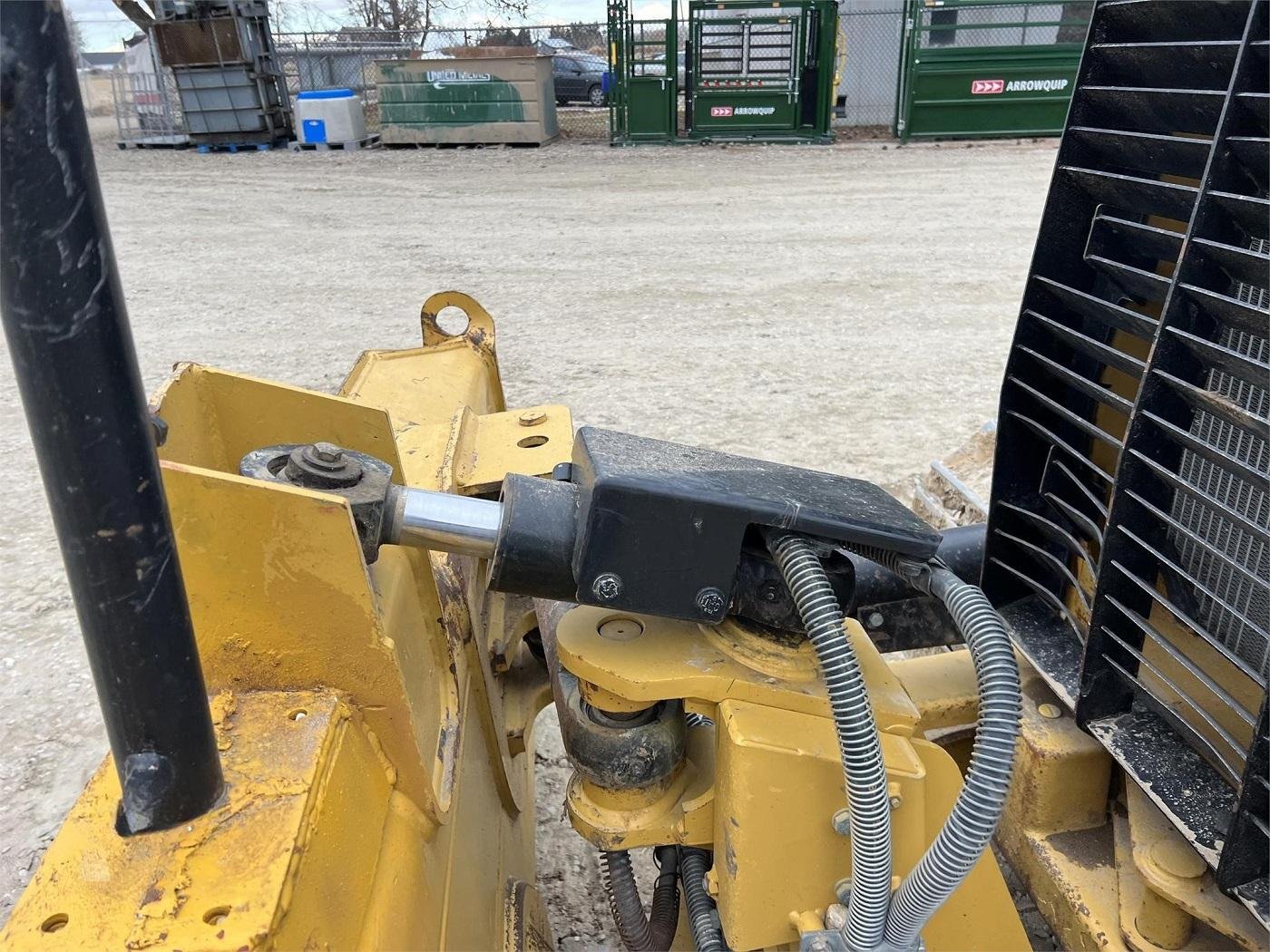

  • Type: 6-Way (PAT) Blade with Tilt
  • Width: 8.7 ft (2.64 m)
  • Height: 35.8 in (0.91 m)
  • Capacity: 2 yd³ (1.53 m³)
  • Blade Angle (Both Directions): 25 degrees
  • Cutting Depth: 22.5 in (0.57 m)

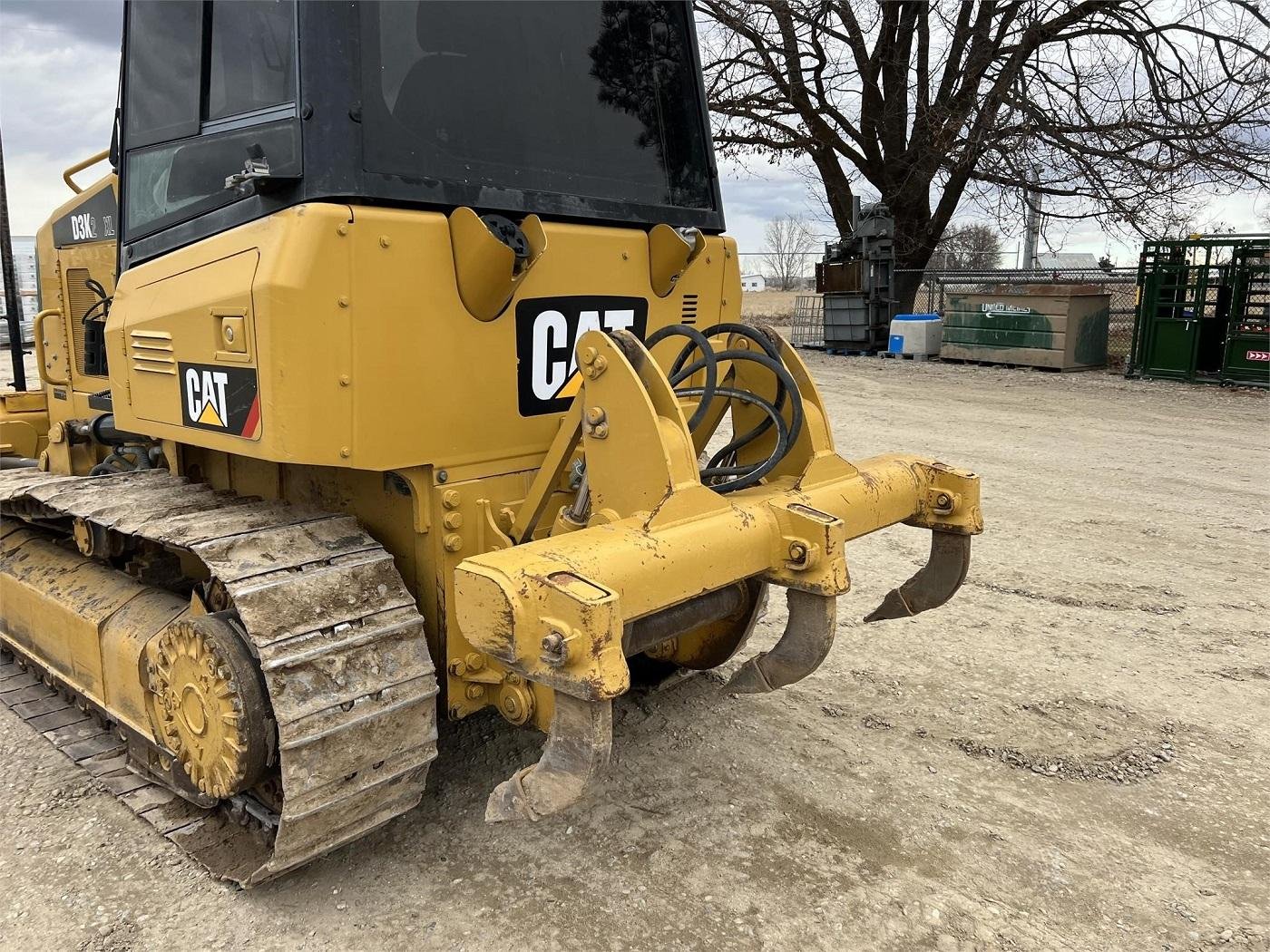

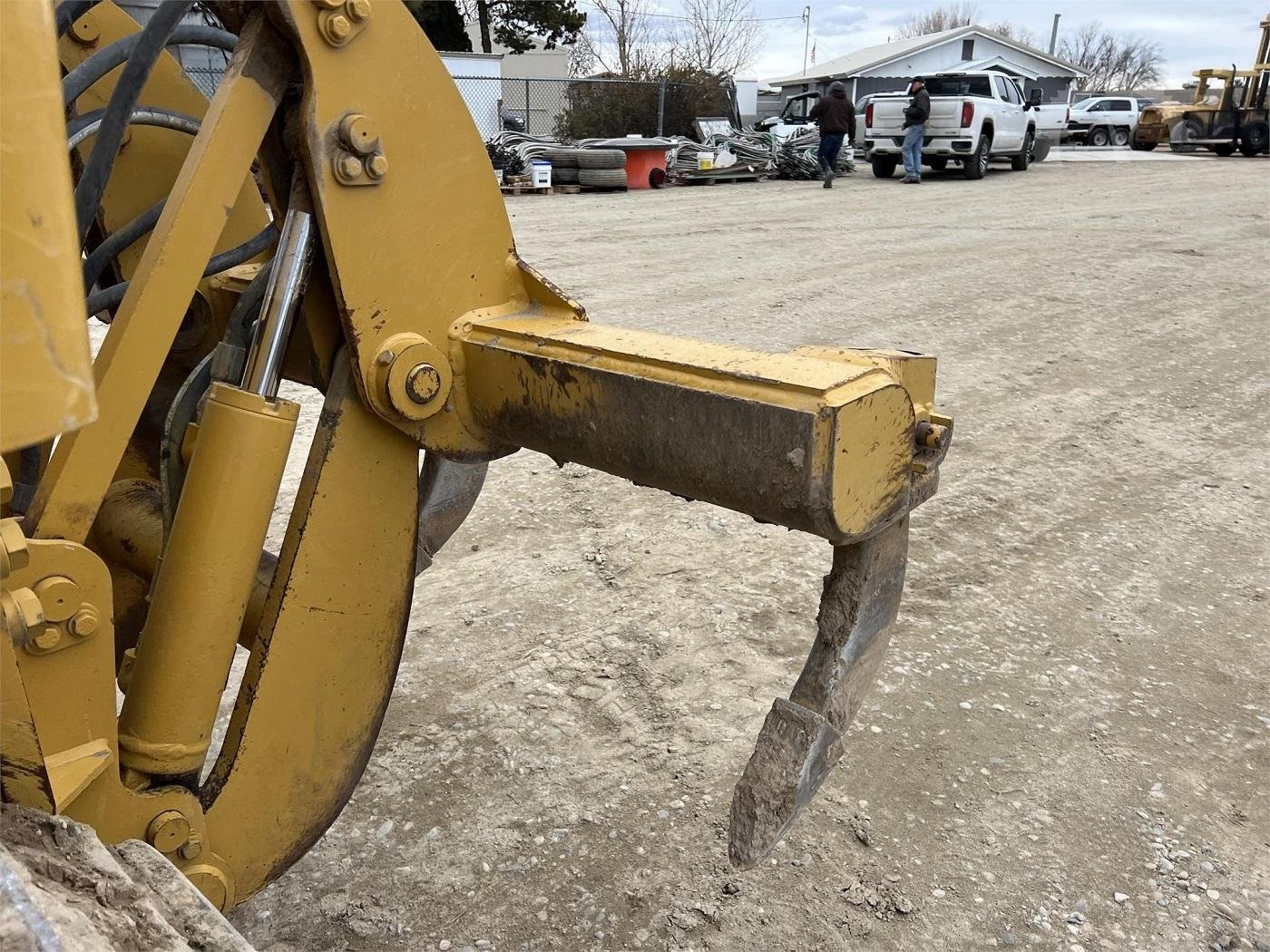

• Ripper:
  • Type: Multi-Shank
  • Number of Shanks: 3

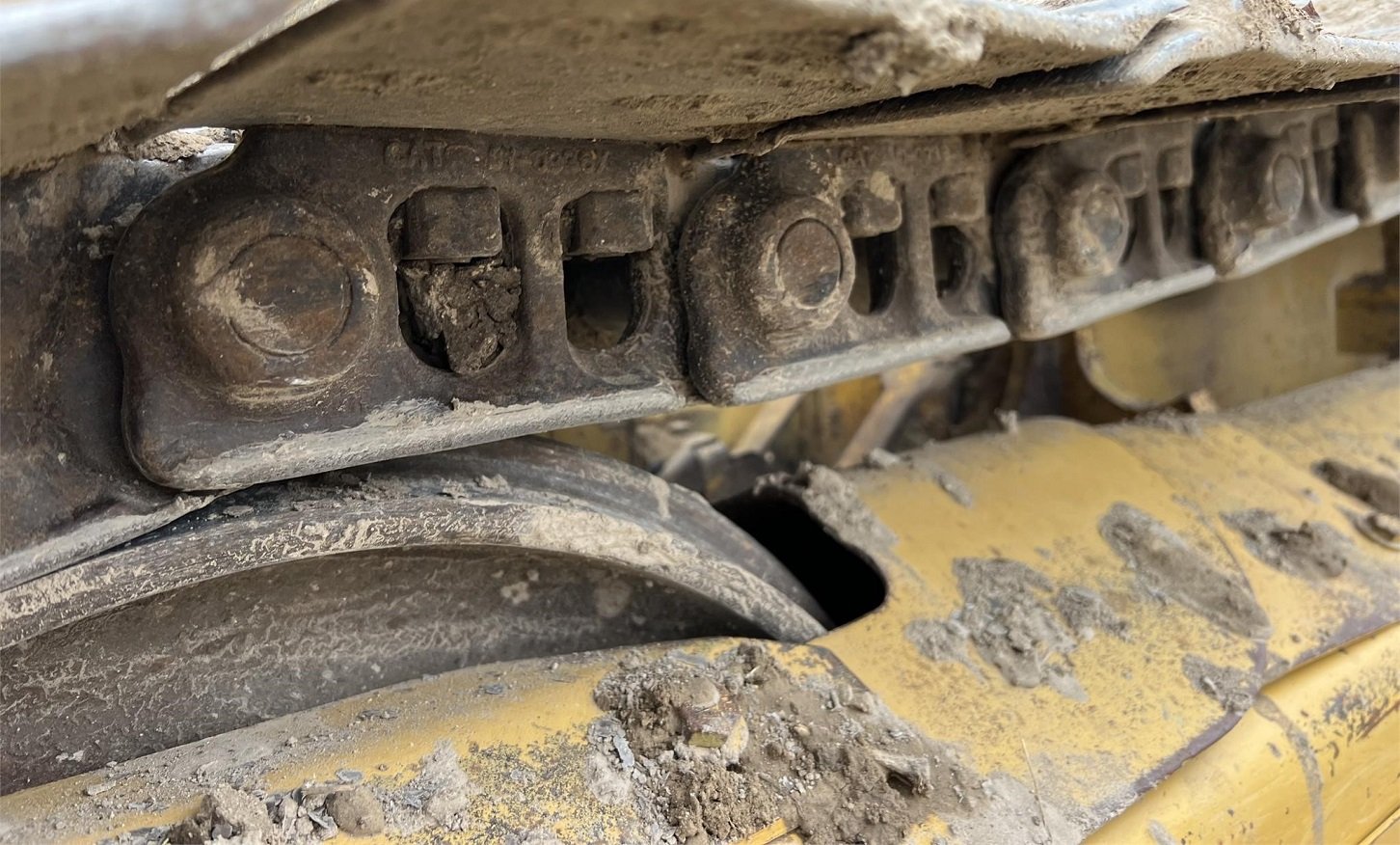

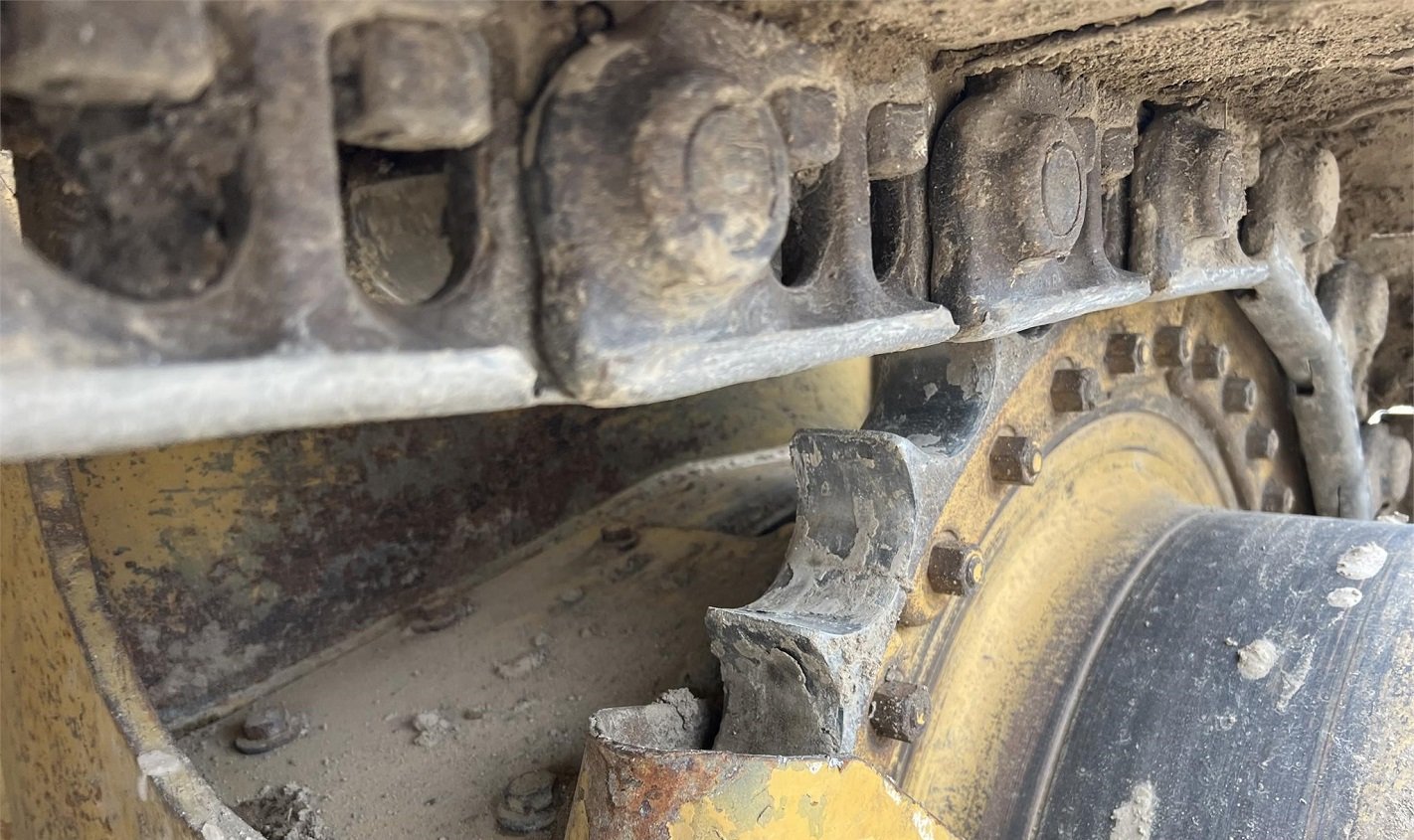

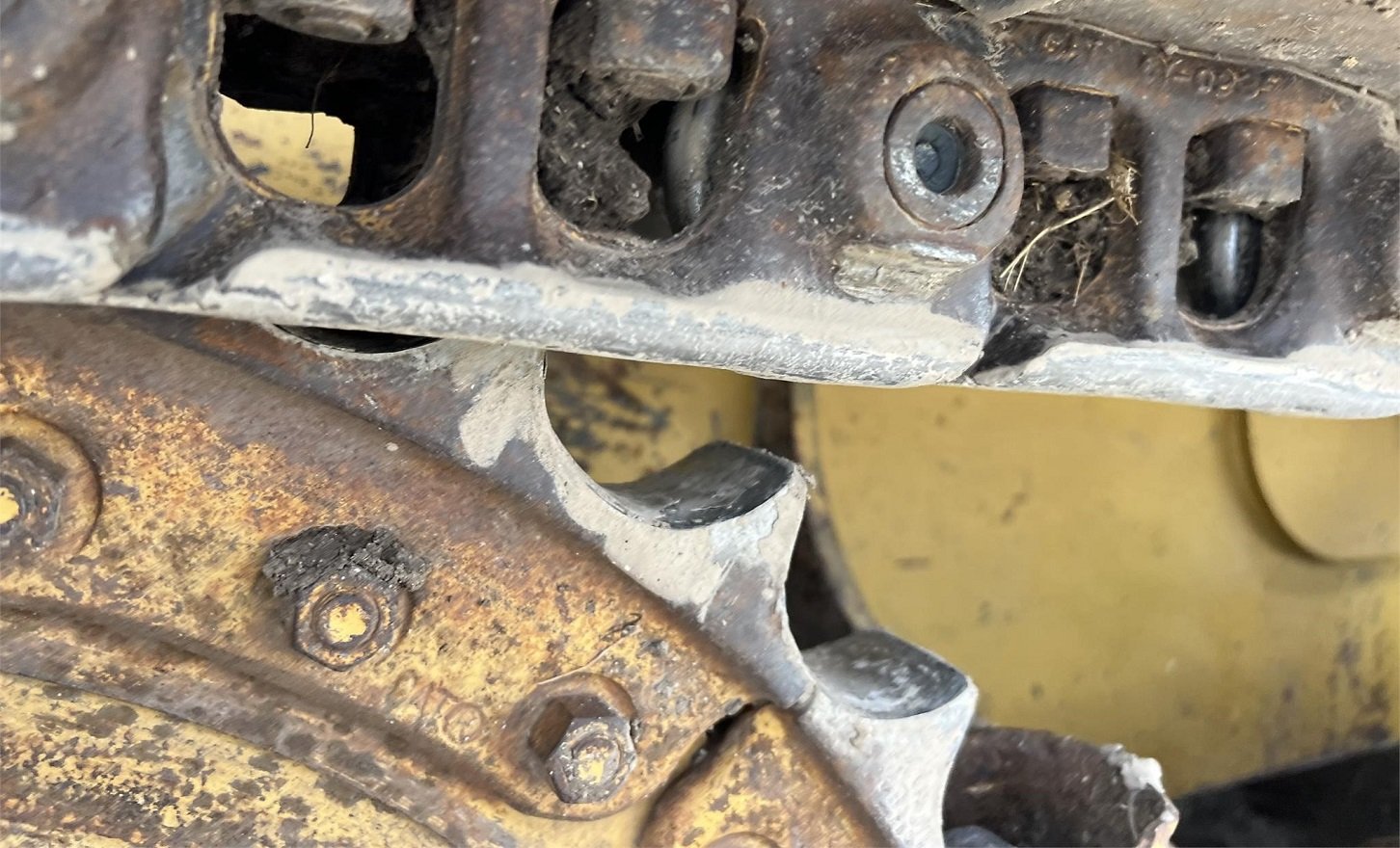

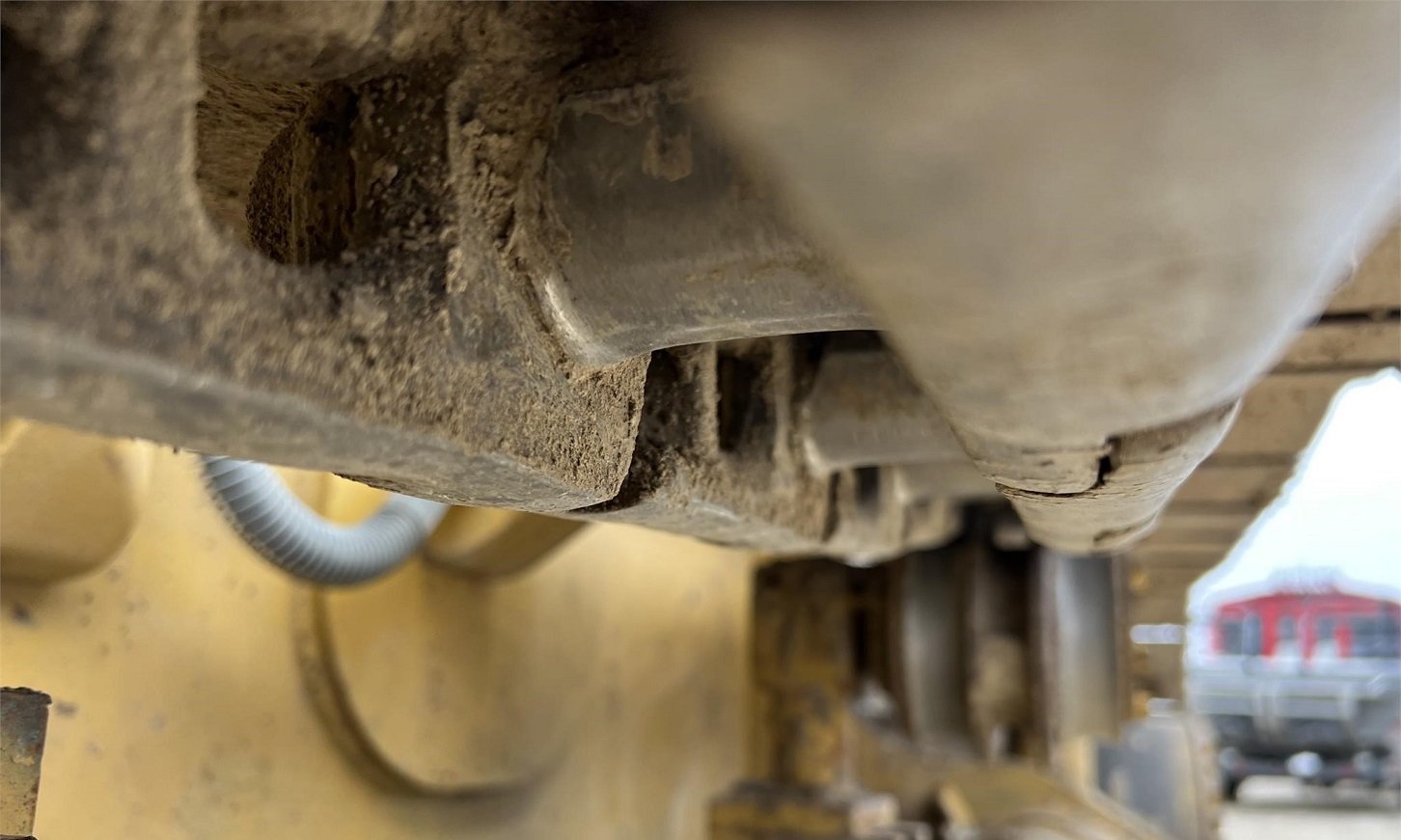

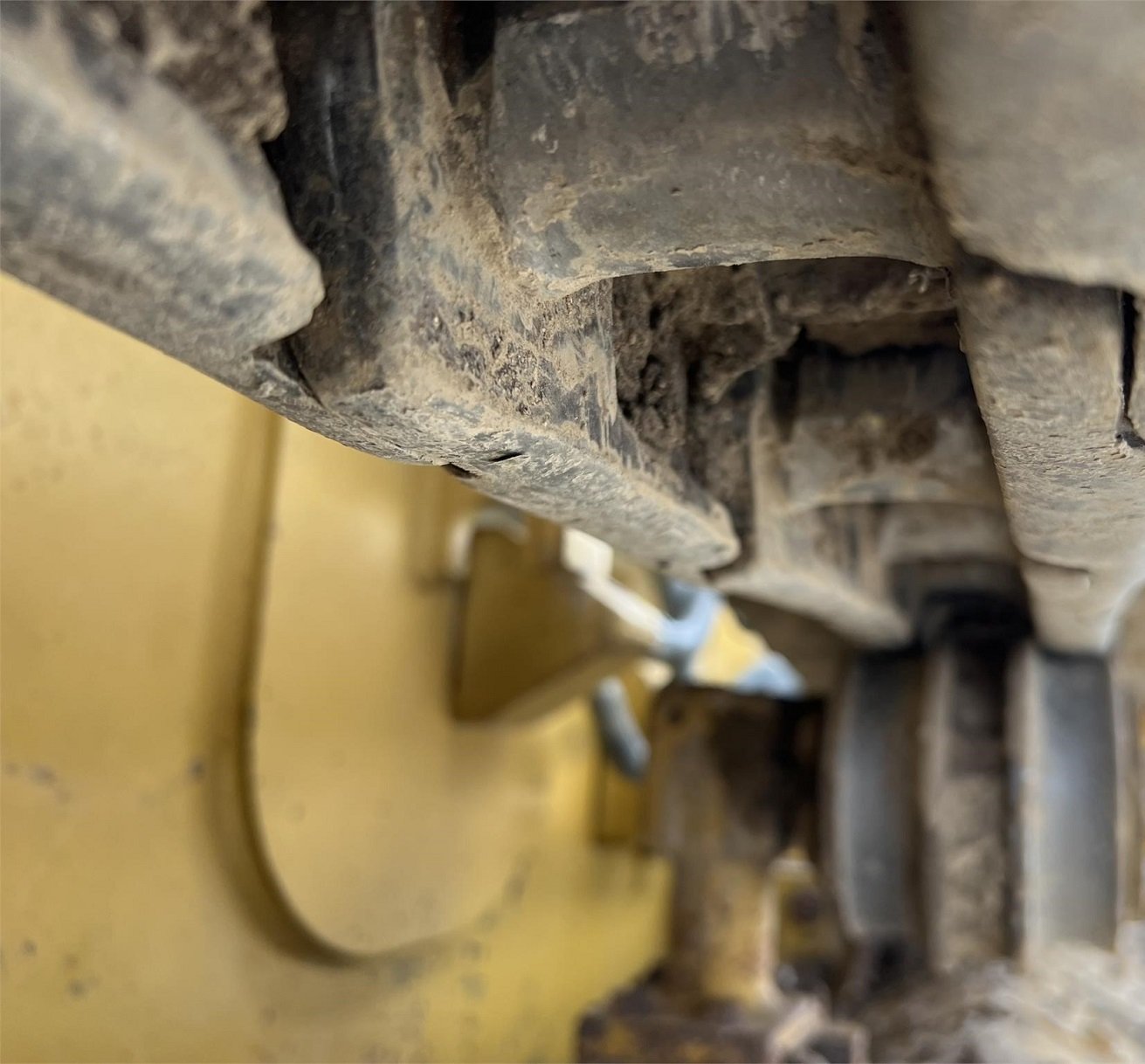

• Undercarriage:
  • Track Type: Steel
  • Standard Shoe Size: 16 in (0.41 m)
  • Number of Shoes per Side: 41
  • Number of Track Rollers per Side: 6
  • Track Gauge: 4.91 ft (1.5 m)
  • Ground Pressure: 6.2 psi

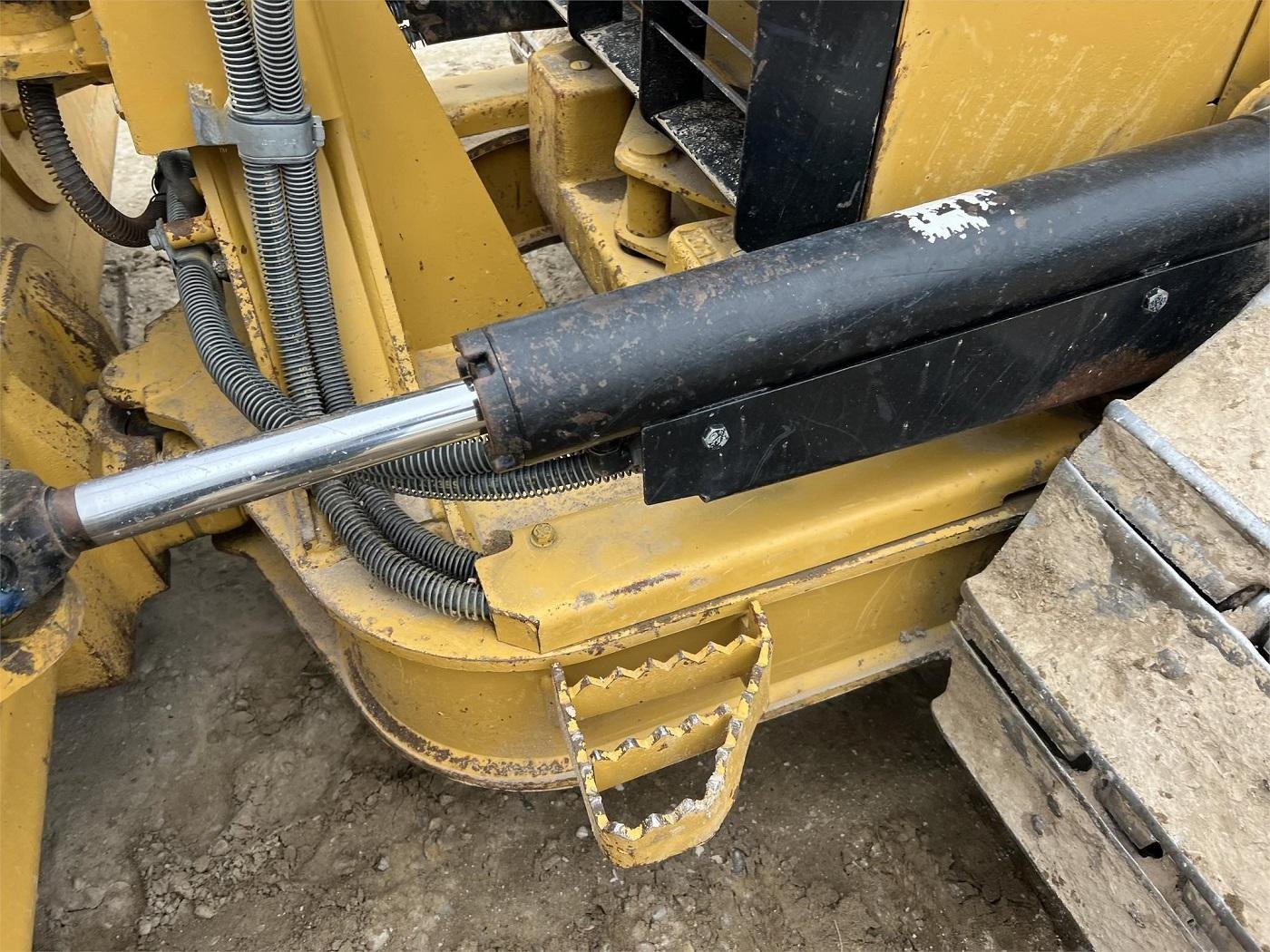

• Hydraulic System:
  • Pump Flow Capacity: 19.4 gal/min (73.5 L/min)
  • Relief Valve Pressure: 2,988 psi (20,600 kPa)

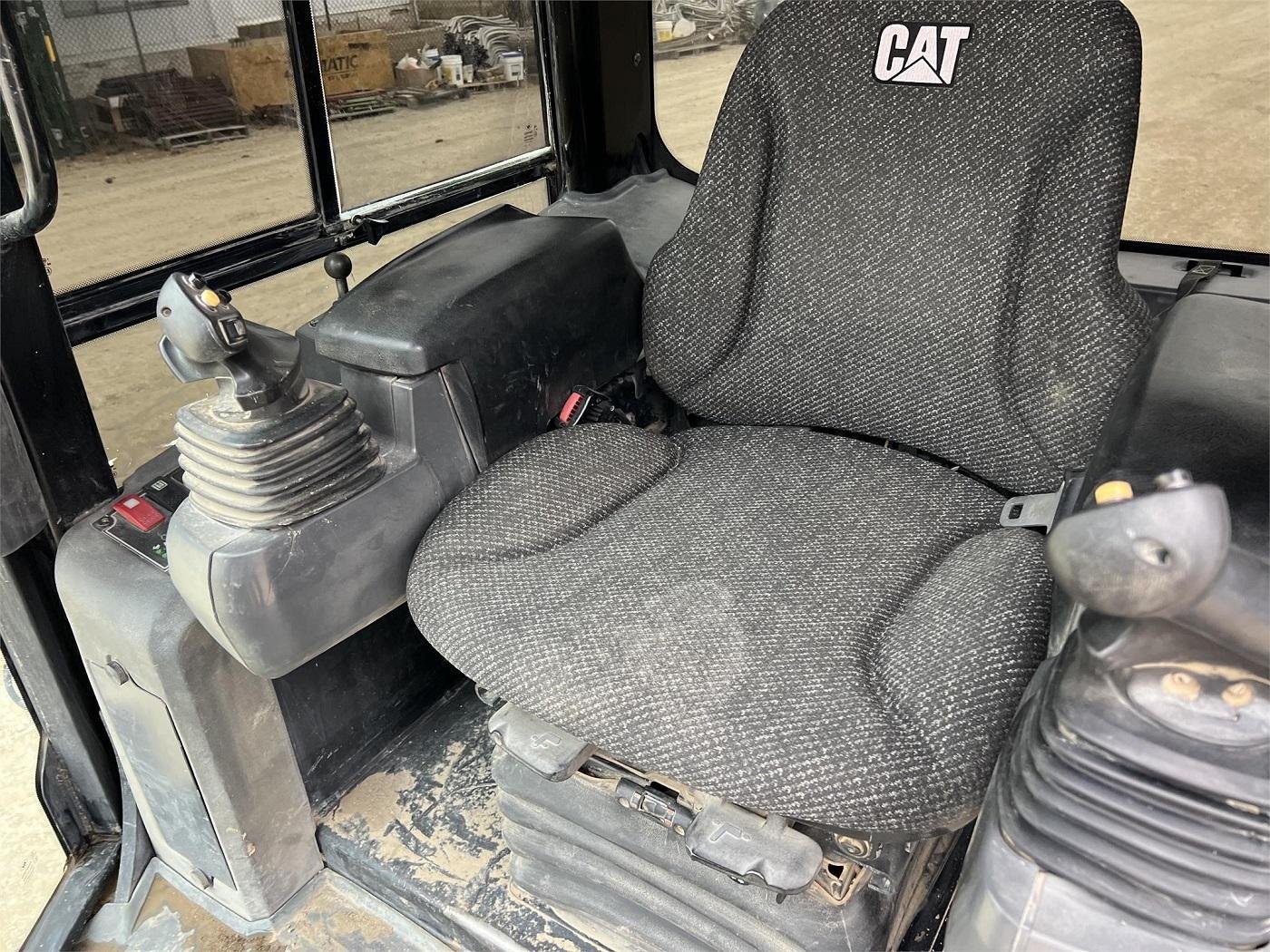

• Operator Environment:

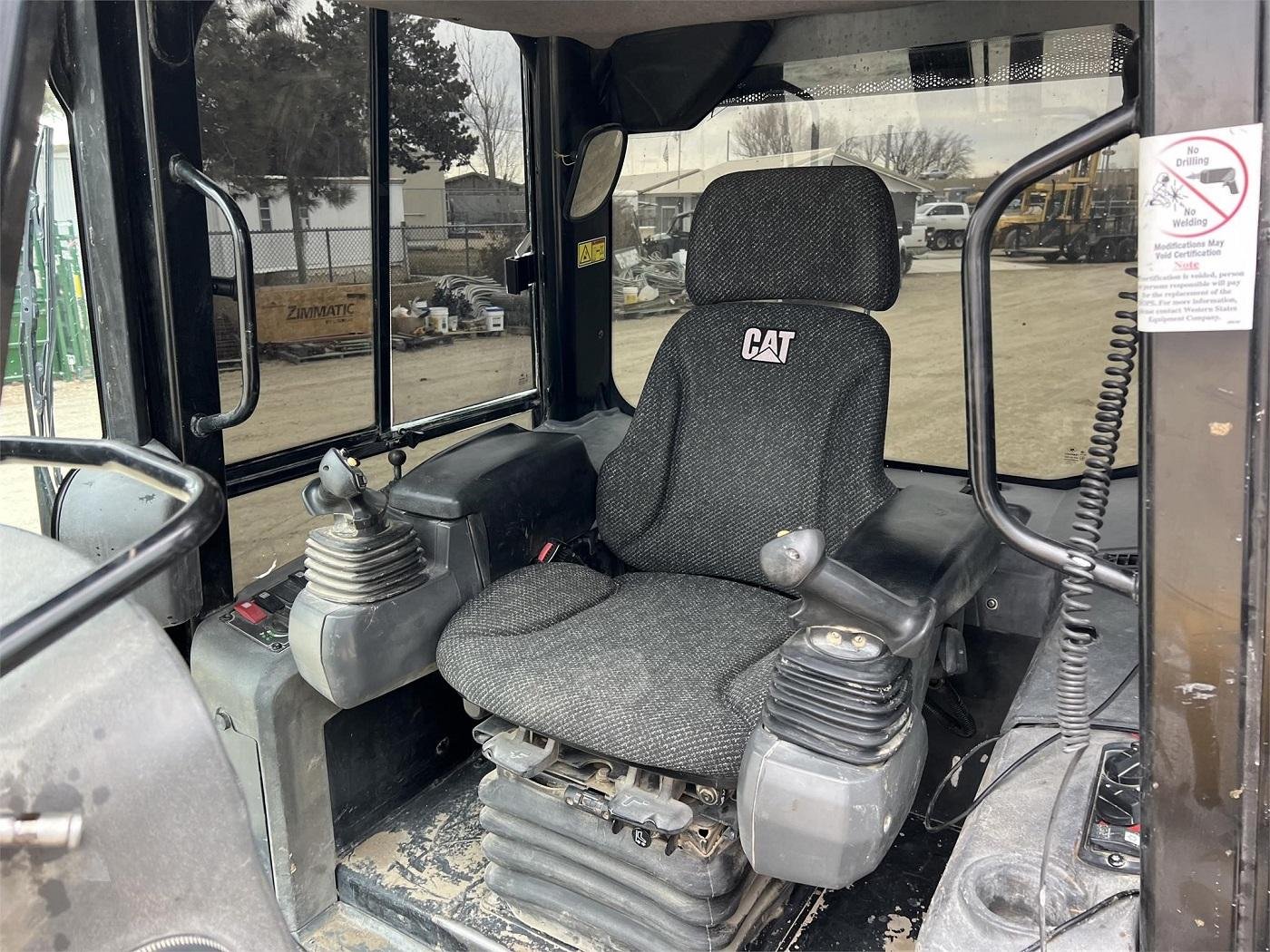

  • Cab: Enclosed ROPS/FOPS
  • Climate Control: Air Conditioning and Heating
  • Seat: Adjustable suspension seat
  • Controls: Ergonomic joystick controls
• Capacities:
  • Fuel Tank: 51.5 gal (195 L)
  • Cooling System: 6 gal (22.7 L)
  • Engine Oil: 3 gal (11.4 L)
  • Hydraulic Fluid: 15.7 gal (59.4 L)
  • Final Drives: 2.6 gal (9.8 L)

Additional Information:

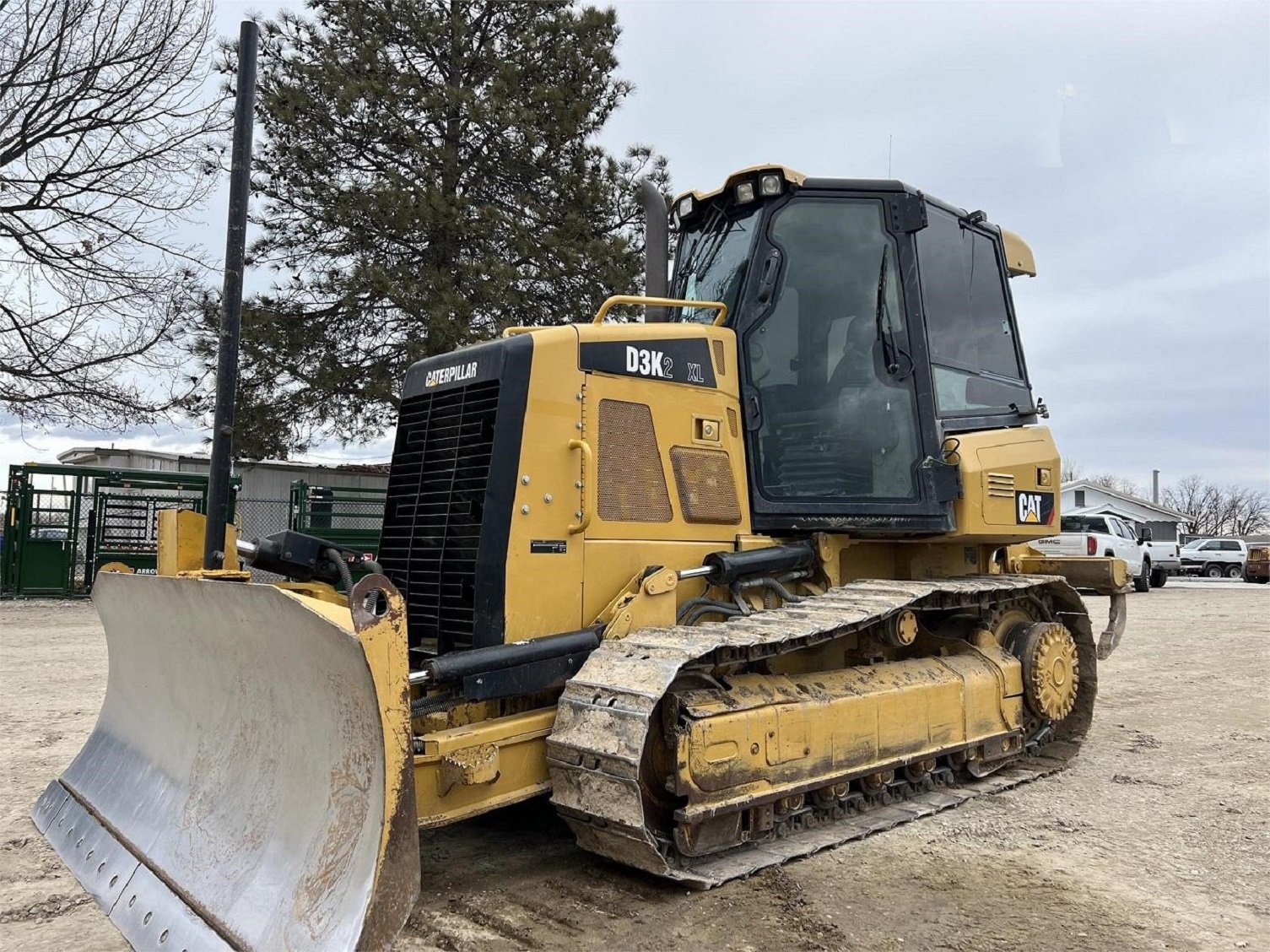

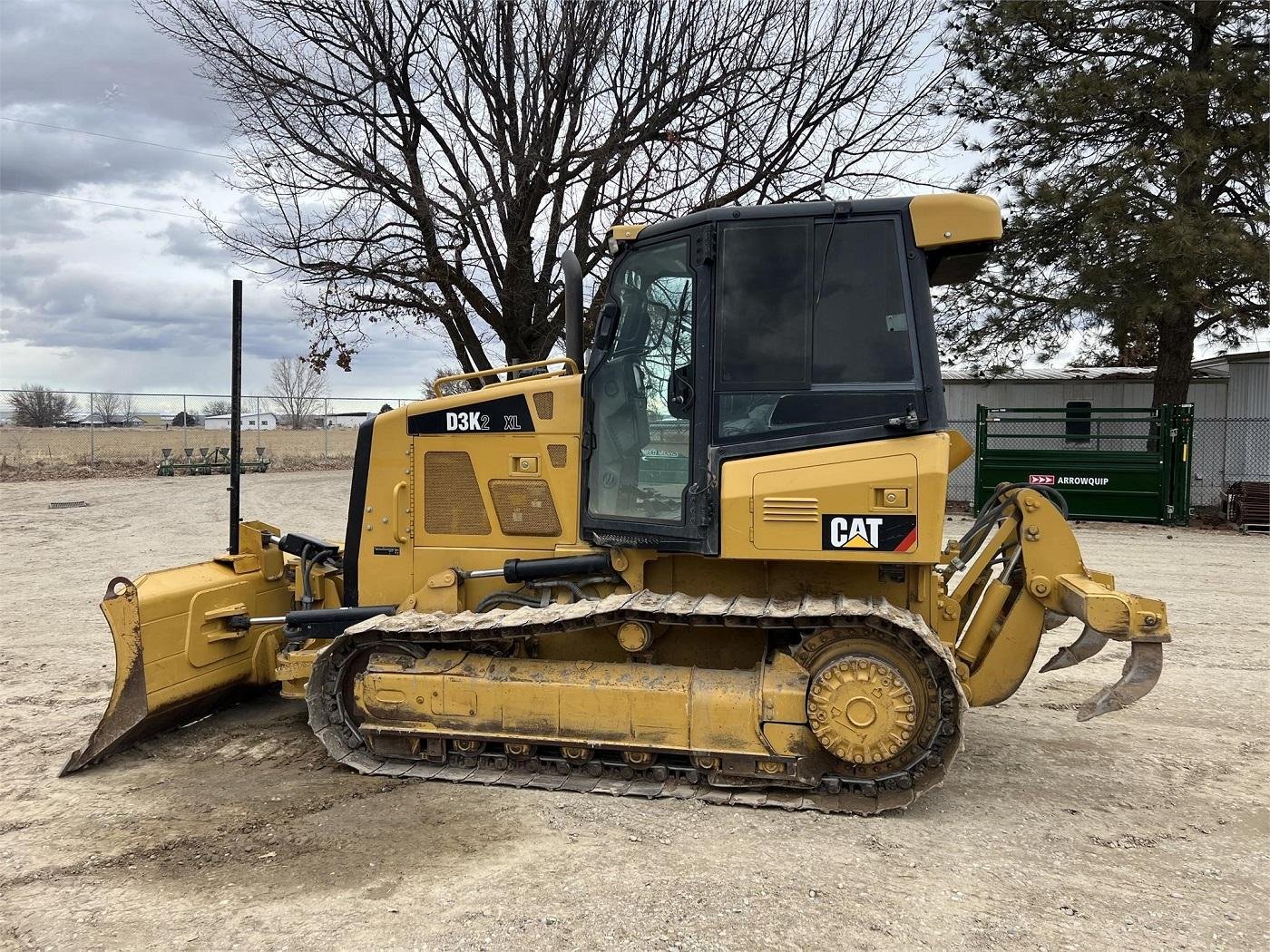

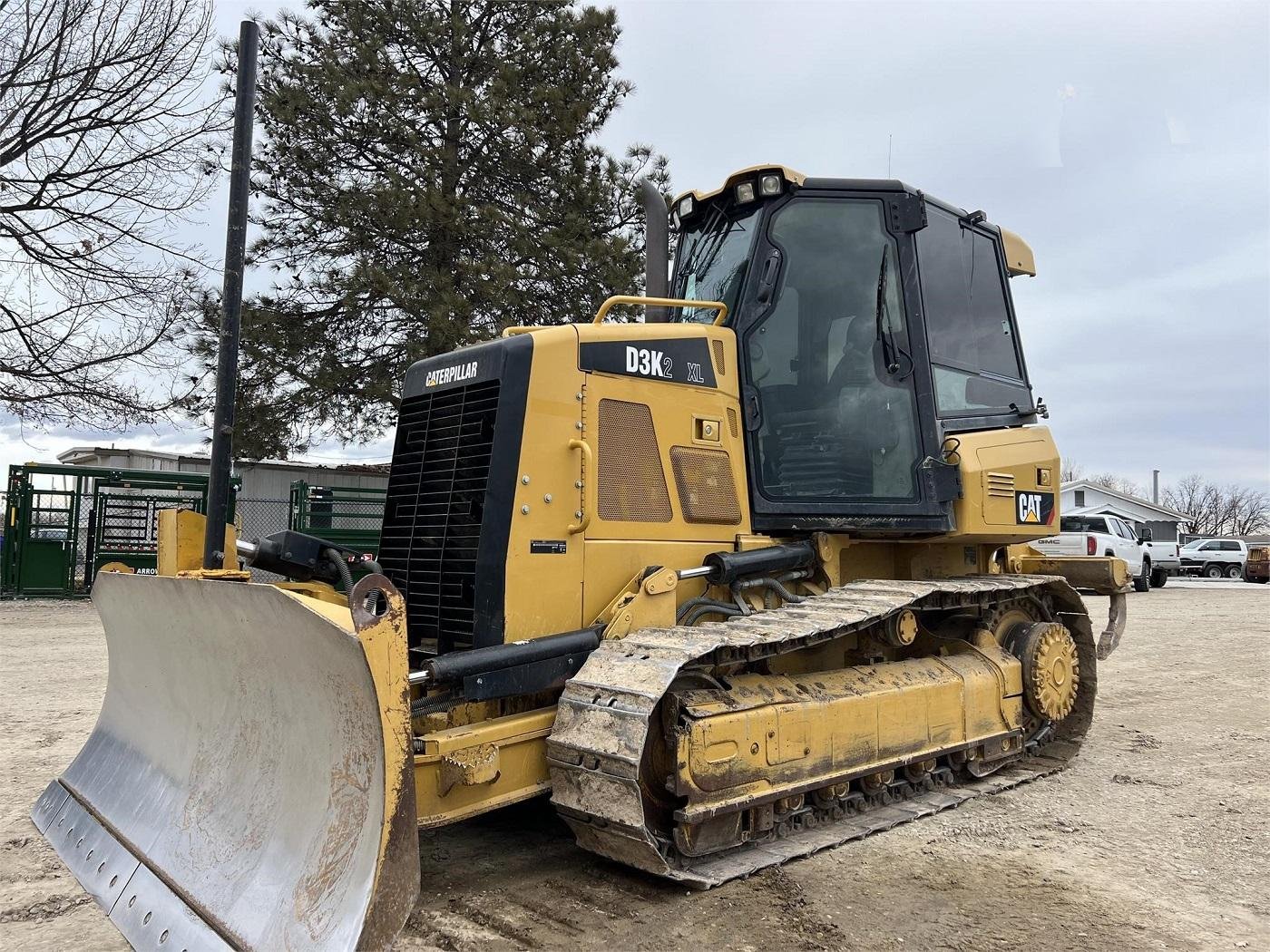

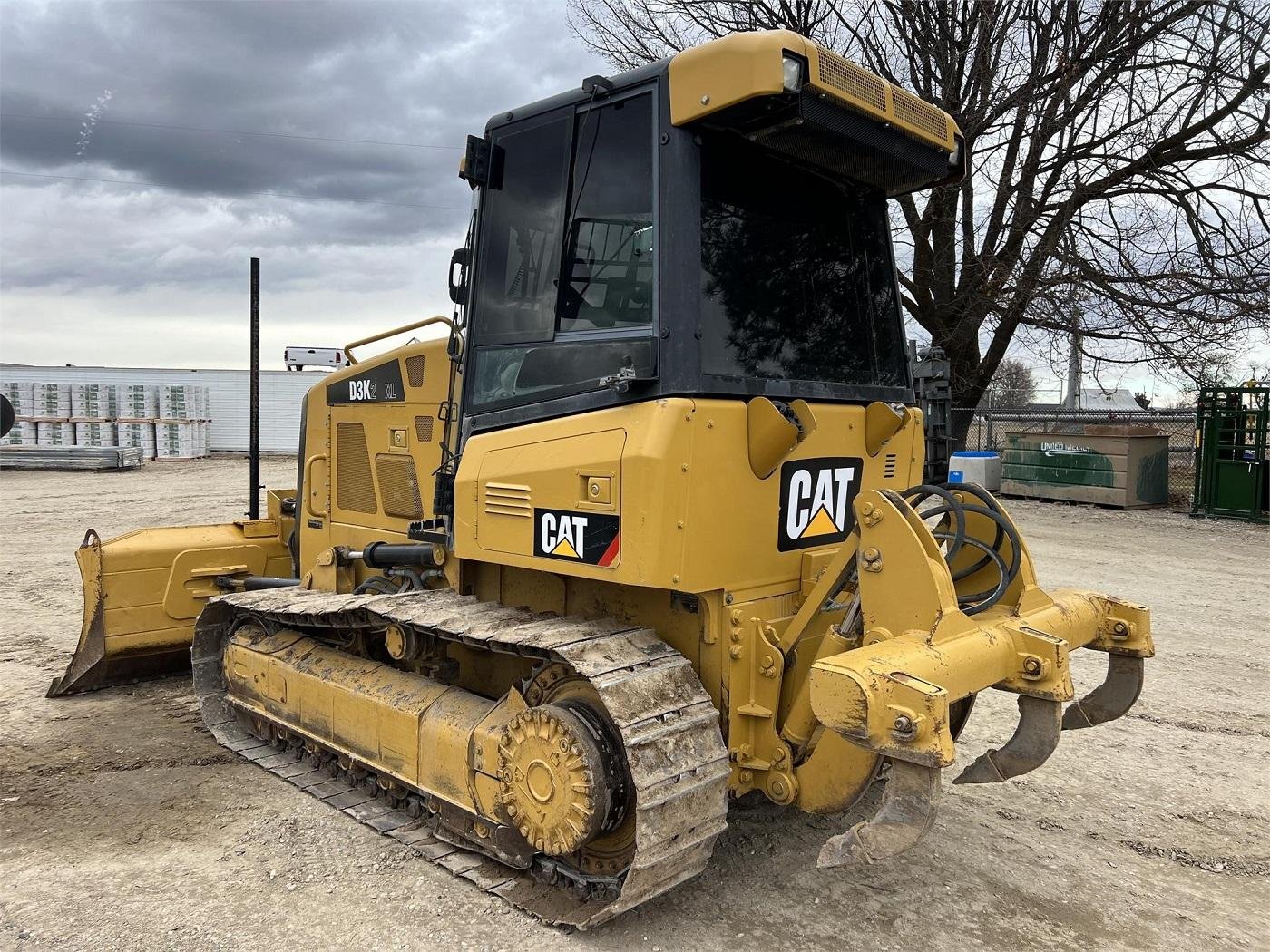

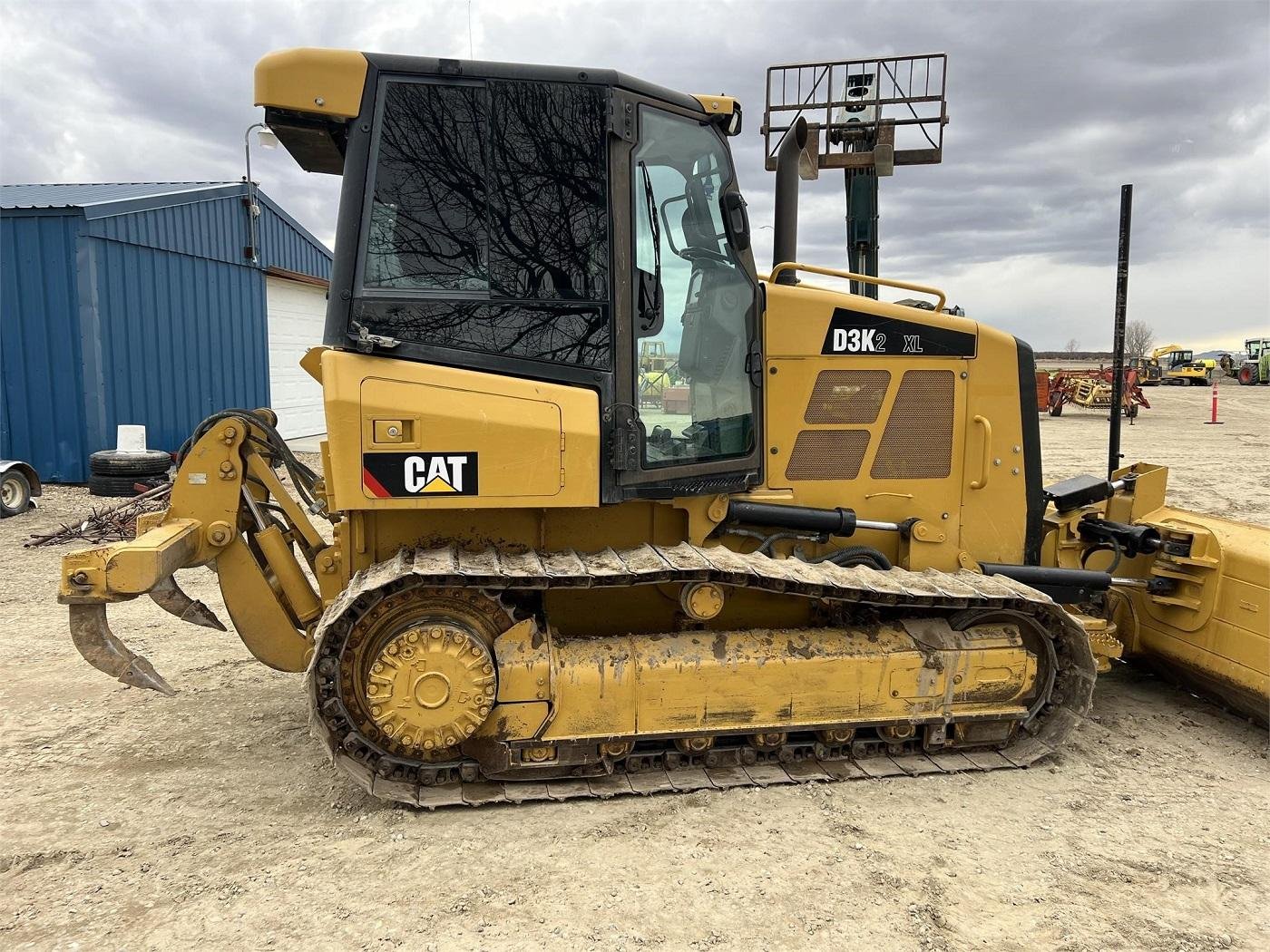

This 2013 Caterpillar D3K2 XL Crawler Dozer is equipped with a 6-way blade with tilt, a 3-shank ripper, and steel tracks, making it versatile for various earthmoving tasks. The enclosed cab with heat and A/C ensures operator comfort in all weather conditions. With 4,723 hours, this machine has been very well maintained and is ready for immediate use.
